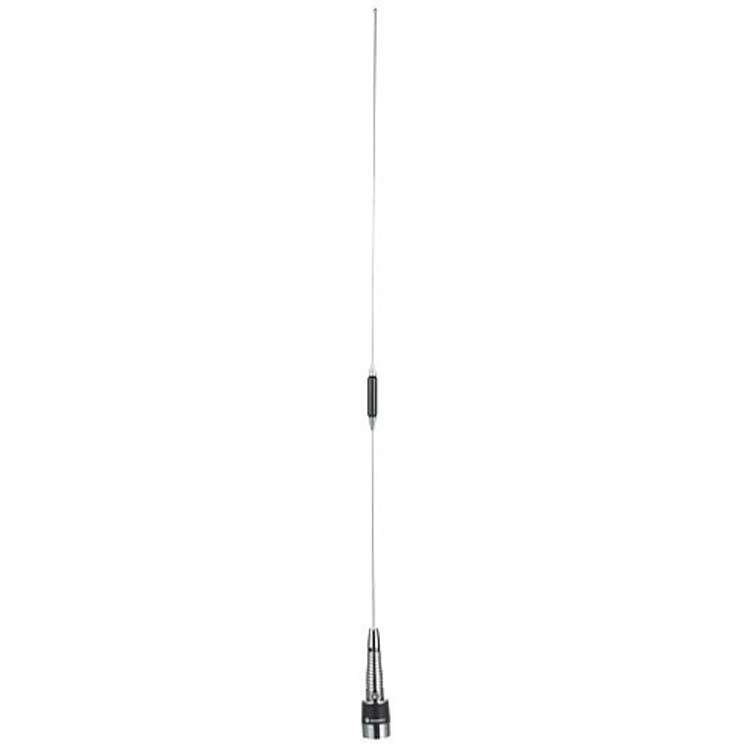

HAE6011A Motorola Mobile Antenna
HAE6011A 5 dB Gain UHF 380–433 MHz Motorola Mobile Antenna for Motorola APX 8500, 7500, 6500, 4500 and 1500 Series Radios.
Product Introduction
Compatible with APX 8500, 7500, 6500, 4500 and 1500 series radios, this HAE6011A Motorola Mobile Antenna accessory is a UHF antenna designed for the 380-420 frequency band with a 5 dB gain. If the mobile radio is programmed with multiple RF bands, one mobile antenna is required for each band. Each frequency band has its own RF port.
Product Parameters
- Model: HAE6011A
- Dimensions (inches): 35 H x 0.13 W x 1.5 L ( 889.00mm x 3.30mm x 38.10mm )
- Frequency Band: UHF
- Frequency Range (MHz): 380-433 MHz
- Mounting Style: Through-hole
- Type: Vehicular installation
- Compatible Models: Compatible with Motorola APX 1500, APX 1500 Enhanced, APX2500, APX 2500 Enhanced, APX 4500, APX 4500 Enhanced, APX™ 4500 Enhanced, APX5500, APX6500, APX6500, APX 7500, APX Consolette, APX 8500, ENHANCED APX5500, ENHANCED APX6500, ENHANCEDAPX6500/LI
