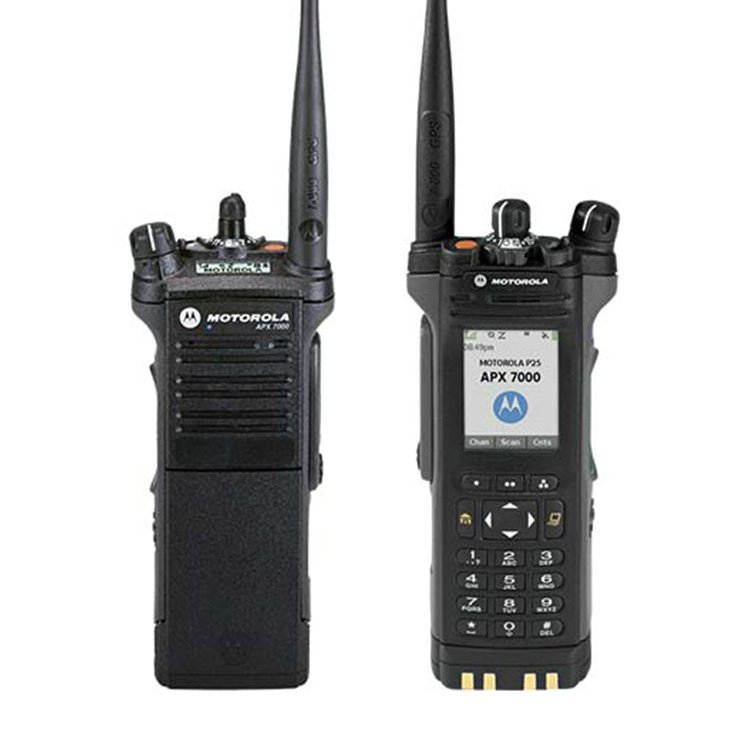

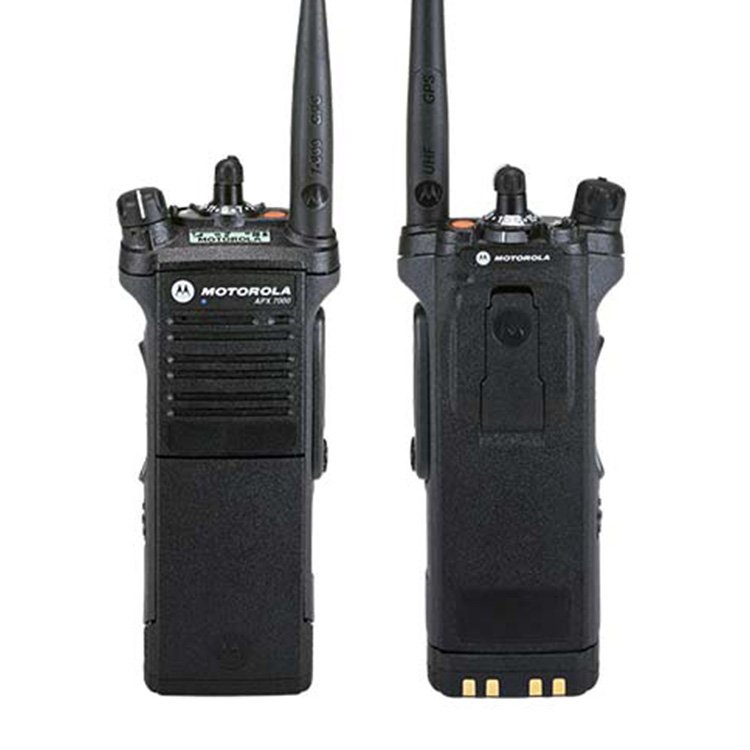

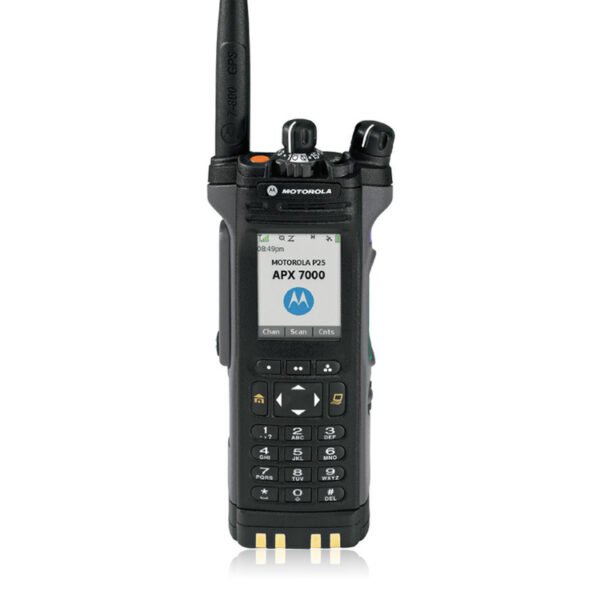

Motorola APX 7000 Portable Police Radio

The Motorola APX 7000 is a versatile, multi-band portable radio designed for public safety and mission-critical operations.

Interoperability: The APX 7000 operates across multiple digital and analog networks and supports various frequency bands (700/800 MHz, VHF, UHF R1, UHF R2), allowing seamless communication between different agencies.
Audio Quality: It features dual microphones for exceptional noise-canceling and dual speakers for the loudest, clearest audio, ensuring every word is heard even in noisy environments.
Future-Ready: The radio is backward and forward compatible, meeting current P25 standards and supporting future technology and data applications.
Rugged Design: Built to withstand harsh conditions, it meets MIL-STD-810 standards and is submersible to 2 meters for 2 hours with the rugged option.
Battery Options: Various Li-Ion IMPRES 2 battery options are available, with capacities ranging from 2300 mAh to 5100 mAh.
Encryption: Supports multiple encryption algorithms (ADP, AES, DES, etc.) and can store up to 1024 encryption keys.
Additional Features: Includes integrated GPS/GLONASS, intelligent lighting, radio profiles, mission-critical wireless Bluetooth, and a full portfolio of accessories.

Basic Parameters:

Frequency Range/Bandsplits:
– 700 MHz: 763-776 MHz, 793-806 MHz
– 800 MHz: 806-824 MHz, 851-870 MHz
– VHF: 136-174 MHz
– UHF Range 1: 380-470 MHz
– UHF Range 2: 450-520 MHz

Channel Spacing:
– 700/800 MHz: 25/12.5 kHz
– VHF: 30/25/12.5 kHz
– UHF Range 1: 25/20/12.5 kHz
– UHF Range 2: 25/12.5 kHz

Rated RF Output Power:
– 700 MHz: 1-2.5 Watts
– 800 MHz: 1-3 Watts
– VHF: 1-6 Watts
– UHF Range 1: 1-5 Watts
– UHF Range 2: 1-5 Watts

Frequency Stability: ±0.8 ppm (–30°C to +60°C; +25°C Ref.)
Audio Output Power at Rated: 1000 mW
Battery Options:
– Li-Ion IMPRES 2, 2300 mAh
– Li-Ion IMPRES 2, 3400 mAh
– Li-Ion IMPRES 2, 4500 mAh
– Li-Ion IMPRES 2, 4850 mAh
– Li-Ion IMPRES 2, 5100 mAh

Dimensions (without battery):
– Length: 6.29 inches (159.7 mm)
– Width (Push-To-Talk button): 2.31 inches (58.6 mm)
– Depth (Push-To-Talk button): 1.34 inches (34.0 mm)
– Width (Top): 2.98 inches (75.6 mm)
– Depth (Top): 1.6 inches (40.5 mm)
– Depth (Bottom of Battery): 1.65 inches (41.7 mm)
