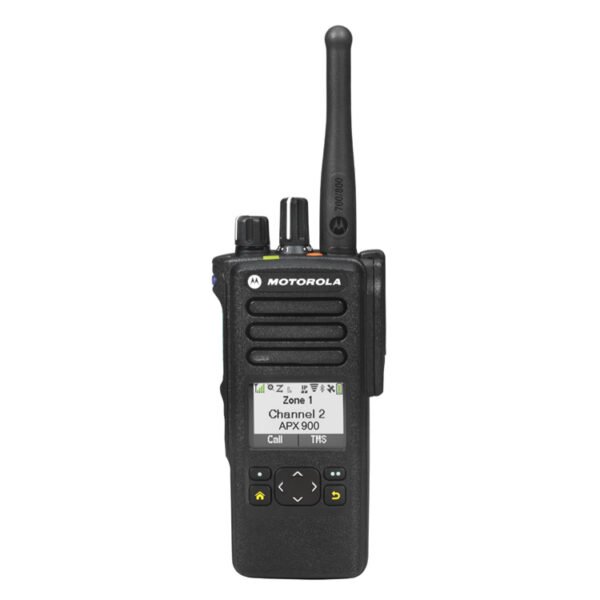

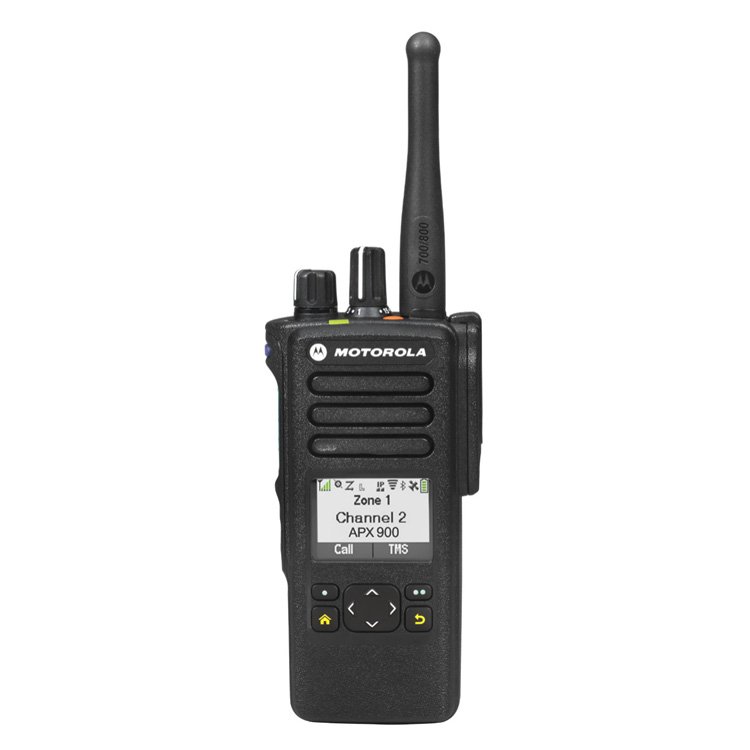

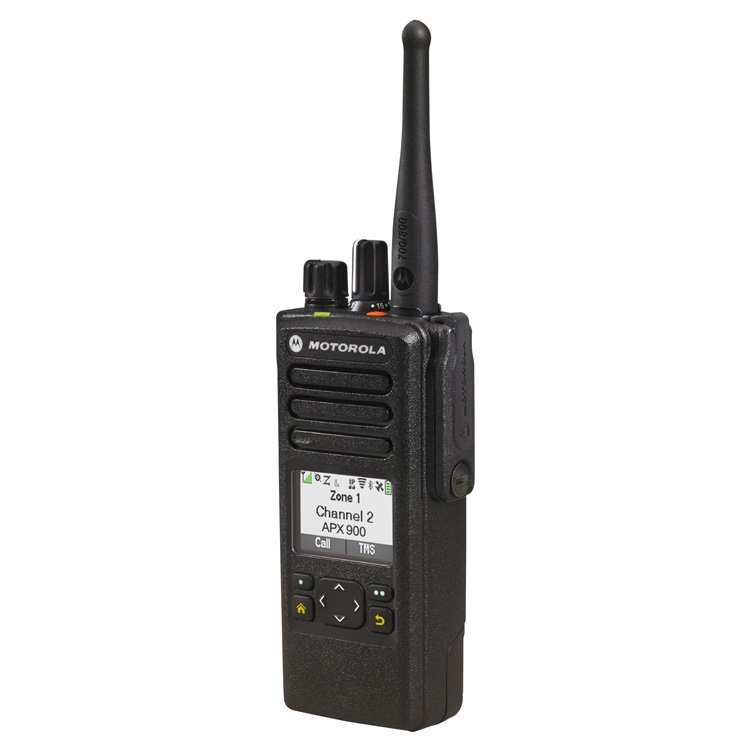

Motorola APX900 APX 900 Radio

The APX 900 is designed to be a cost-effective solution for essential communication needs across various sectors. The APX 900 is designed for public works, government services, and education teams needing essential communication at an affordable price.

Key Features:

Design: Focused on everyday efficiency with tactile, dedicated knobs for volume and channel, allowing for easy use even in dark areas and confined spaces.
Bluetooth: Equipped with Bluetooth 4.0 (LE) capability, enabling wireless communication without draining the battery.
Service Packages: Offers three levels of service packages (Essential, Advanced, Premier) to manage fleet and operations with varying levels of support.
P25 Compliance: Certified compliant with the P25 standard, ensuring seamless communication with other P25-compliant organizations and first responders.

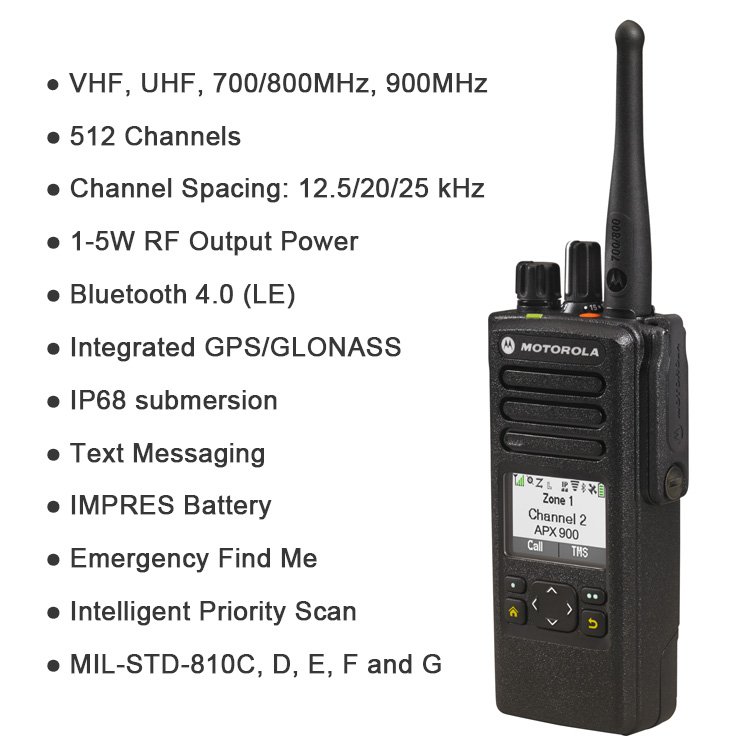

Technical Specifications: Available in various frequency bands (VHF, UHF, 700/800 MHz, 900 MHz) with features like dual-knob solution, embedded digital signaling, intelligent priority scan, and more.
Environmental Specifications: Designed to withstand harsh conditions with IP68 submersion rating and compliance with MIL-STD-810 standards.

Applications

The APX 900 is a versatile communication device designed for various applications, particularly in sectors that require reliable and efficient communication. Here are some key applications:

1. Public Works: Ideal for teams involved in infrastructure maintenance, construction, and other public services. The APX 900 ensures seamless communication, even in challenging environments.
2. Government Services: Used by various government agencies for routine operations and emergency response. Its P25 compliance ensures interoperability with other agencies and first responders.
3. Education: Suitable for school and university campuses to enhance security and coordination among staff. The APX 900’s easy-to-use features make it accessible for non-technical users.
4. Emergency Services: While not primarily designed for mission-critical safety, it still provides reliable communication for emergency situations, ensuring that teams can coordinate effectively.
5. General Workforce: Useful for any organization that needs efficient, cost-effective communication solutions. Its Bluetooth Low Energy (LE) functionality allows for wireless communication without draining the battery.

Basic Parameters of the APX 900

Frequency Range/Bandsplits:
– VHF: 136-174 MHz
– UHF Range 1: 380-480 MHz
– UHF Range 2: 450-520 MHz
– 700/800 MHz: 764-776 MHz, 794-806 MHz, 806-824 MHz, 851-870 MHz
– 900 MHz: 896-902 MHz, 935-940 MHz

Channel Spacing: 12.5/20/25 kHz
Rated RF Output Power (Adjustable):
– VHF, UHF Range 1, UHF Range 2: 1-5 W
– 700 MHz: 1-2.5 W
– 800 MHz: 1-3 W
– 900 MHz: 1-2.5 W

Frequency Stability: ±1.0 ppm (-30 °C to +85 °C; +25 °C Ref.)
Modulation Limiting: ± 2.5/4/5 kHz (12.5/20/25 kHz)
Audio Response: +1, -3 dB
Emissions (conducted and radiated): -75 dBc
FM Hum & Noise: -45/-47 dB (12.5/25 kHz)
Audio Distortion: 1.00%
Audio Output Power at Rated: 500 mW
Analog Sensitivity: 0.216 μV (12 dB SINAD)
Digital Sensitivity: 0.188 μV (1% BER), 0.234 μV (5% BER)
Selectivity: -70/-76 dB (12.5/25 kHz)
Intermodulation: 79.5 dB
Spurious Rejection: -79.3 dB
Environmental Specifications:
– Operating Temperature: -30 °C to +60 °C
– Storage Temperature: -40 °C to +85 °C
– Humidity: Per MIL-STD
– ESD: IEC 61000-4-2
– Water and Dust Intrusion: IP68 (2 meters, 2 hours)

Dimensions (Radio with Battery):
– Length: 5.1 in (130 mm)
– Width: 2.2 in (55 mm)
– Thickness: 1.4 in (36 mm) with standard battery, 1.6 in (41 mm) with high-capacity battery
– Weight: 11 oz (315 g) with standard battery, 12 oz (347 g) with high-capacity battery
