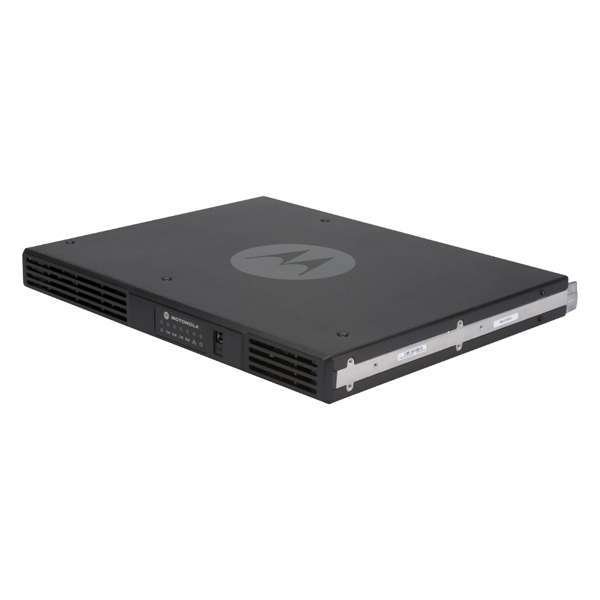

Motorola SLR 5000 Series VHF UHF Repeater
The MOTOTRBO SLR 5000 Series Repeater provides reliable two-way radio service, connecting your workplace whether in the field or factory. Its sleek design and low power consumption make it cost-effective. As the next generation in repeaters, it’s a cornerstone of a MOTOTRBO professional two-way radio system. It supports single site conventional systems and powerful trunking capabilities of Capacity Plus, Linked Capacity Plus, or Connect Plus, delivering digital two-way radio power to your workforce.
Model: SLR 5000
Brand: Motorola
Frequency band: VHF / UHF
Number of channels: 64
Power output: 1-50W (RF)
Weight: 19 lbs (8.6 kg)
Standard warranty: 2 years
SLR 5000 Series Repeater include:
SLR 5300, SLR 5500, SLR 5700
| Model | SLR 5000 / 5300 / 5500 / 5700 |
| Frequency band |
VHF: 136-174MHz UHF1: 400-470MHz, UHF2: 450-512MHz |
| RF Power output | 1-50 W |
| Channel spacing | 12.5 / 25KHz |
| Channel Capacity | 64 |
| Dimensions (H x W x D) | 1.75 x 19 x 14.6 in (44 x 483 x 370 mm) |
| Weight | 19 lbs (8.6 kg) |
| Input Voltage (AC) | 100-240 Vac, 47-63 Hz |
| Input Voltage (DC) | 11.0-14.4 Vdc |
| Battery Charger Capacity | 12 V, 3 A |
| Frequency Stability | ±0.5 ppm |
| Supported System Types | Digital Conventional, IP Site Connect, Capacity Plus (Single Site and Multi-Site), Capacity Max, Connect Plus, Analog Conventional, MPT 1327 |
| Contact us for latest prices | |
1. NEXT GENERATION MOTOTRBO REPEATER. The SLR 5000 Series is a leap in repeater design and technology. It’s based on field experience, customer feedback, and innovation. It delivers performance and efficiency for your two-way radio system. It has solid reliability and clever features like a battery charger.
2. HIGH PERFORMANCE. The SLR 5000 Series offers reliable operation around the clock. It operates at a continuous full transmit power of 50W. Its design has been validated through Motorola’s ALT program. It meets stringent quality criteria. It has a next-generation receiver design for reliable coverage. It gives clear voice quality even in adverse conditions. It supports the full MOTOTRBO feature set. It’s compatible with all MOTOTRBO system architectures. The IP interface lets you build applications and consoles into your system. MOTOTRBO RF Planning and IP Integration Services are available.
3. HIGH EFFICIENCY. The SLR 5000 Series uses the latest RF technology for power efficiency. It has a space-efficient 1U height and low thermal footprint. It has simple servicing requirements. It has field-replaceable modules. A front panel USB port allows easy configuration. It has built-in features like a 3A battery charger, alarm ports, and an auxiliary power output. Five years of service coverage is included.
4. DESIGNED FOR THE FUTURE. Motorola is committed to supporting you with sophisticated workforce communication solutions. The SLR 5000 Series is designed with the future in mind. It has 10x more processing power, 15x more memory, and 125x more data storage than first-generation repeaters. It has provision for expansion modules.
5. MOTOTRBO SLR 5000 SERIES. The SLR 5000 Series repeater is at the heart of a MOTOTRBO professional two-way radio system. It has excellent performance, high reliability, and a clever design. It’s a small, slim unit. Contact us for more information.
