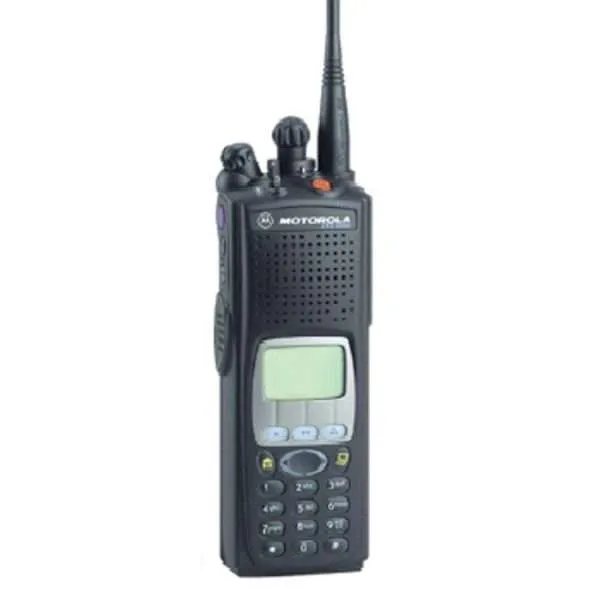

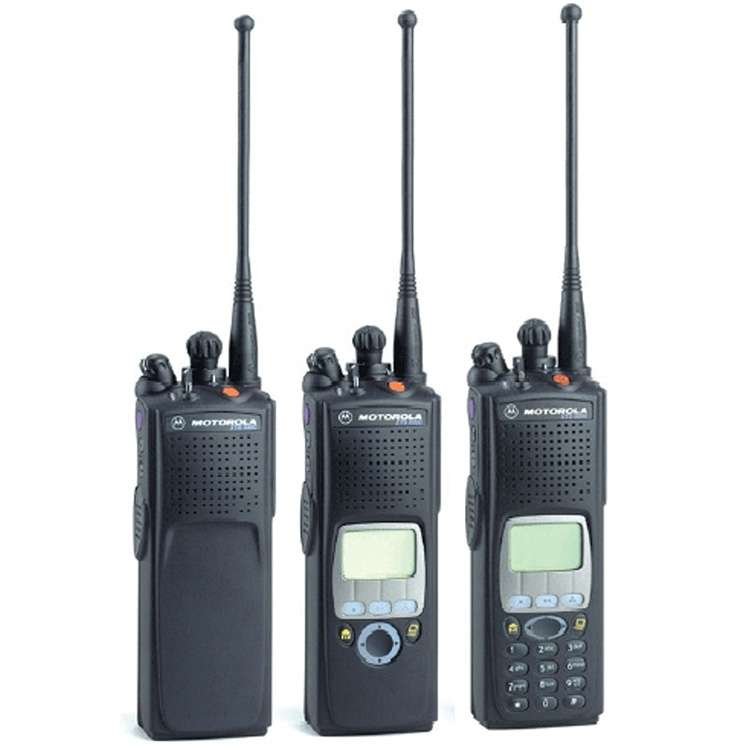

Motorola XTS5000 XTS 5000 VHF UHF Radio

Motorola’s XTS 5000 is a rugged and highly interoperable Project 25 Digital Radio, designed for seamless communication in demanding environments. Tailored for law enforcement, firefighters, emergency medical, military, and federal agencies, this IP-enabled two-way radio boasts advanced features, making it the preferred tool for life-saving professionals.

Model: XTS5000
Brand: Motorola
Frequency Band: : 700/800 MHz, VHF, UHF
Channel Capacity: 16/48, 1000
RF Output Power: 1-3W / 1-5W / 1-6W
Channel Spacing: 12.5 / 25 kHz
Standard warranty: 2 years

INQUIRY NOW

Feature

FEATURES AND BENEFITS

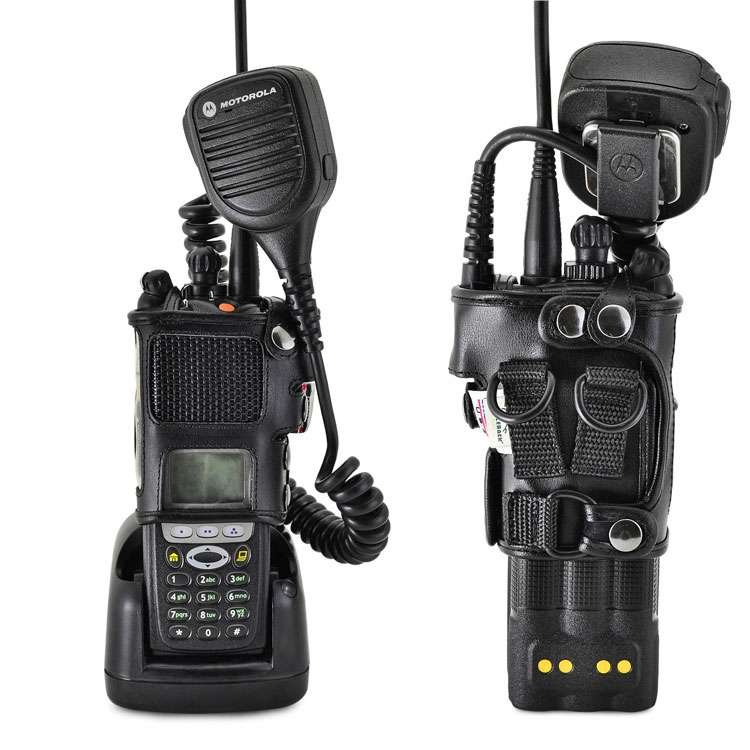

GPS enabled using GPS Radio Speaker Microphone
Available in the 700/800 MHz, VHF, UHF R1 and R2 bands
Trunking standards supported: clear or digital encrypted APCO P16 and APCO P25
Capable of SmartZone®, SmartZone Omnilink, SmartNet®, and Conventional System
Configurations and ASTRO®25 Trunked Operation
Narrow and wide bandwidth digital receiver (12.5 kHz / 25 kHz)
Embedded digital signaling (ASTRO & ASTRO 25)
Enhanced audio features
– High quality, error corrected digital voice
– Noise Shield™ Enhanced Noise Reduction Software
– Audio Gain Control
Convenience Features
– Time / Date
– Digital Caller ID
Ruggedized housing option available in traditional black or public safety yellow
Enhanced encryption capability (optional)
Utilizes Windows®-based Customer Programming
Software (CPS)
– Supports USB and RS-232 communications
– Built in FLASHport™ support
Meets Applicable Mil Specs 810C, D, E and F
XTS 5000 VHF is now approved for FCC Rule Part 80, Maritime Services
Compatible with most MTS and XTS accessories
Interchangeable display labels

Model	Motorola XTS5000
Frequency Band	700/800MHz: 764-870MHz; VHF: 136-174MHz; UHF Range: 380-470MHz / 450-520MHz
Power	3W (700/800MHz), 6W (VHF), 1-5W (UHF), 2-5W (UHF)
Power output	6W Max.
Channels	16-48 (Model I); 850 (Model II & III)
IP Standards	IP54, IP67
Weight	21.6oz (612.36 g) with ultra high capacity NiCD battery
Size	12.72 x 2.44 x 1.83 in. (323.01 x 61.98 x 46.48 mm)
Battery life	8 hours (all battery types)
Coverage area	Programming Software allows adjustable power output for varying coverage
Signalling	P25, MDC1200
