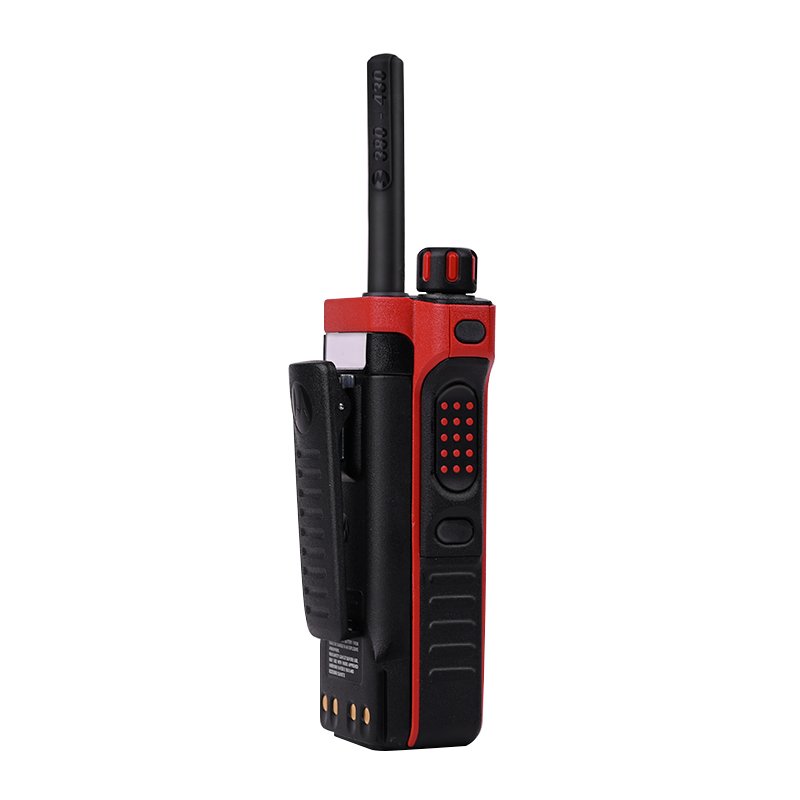

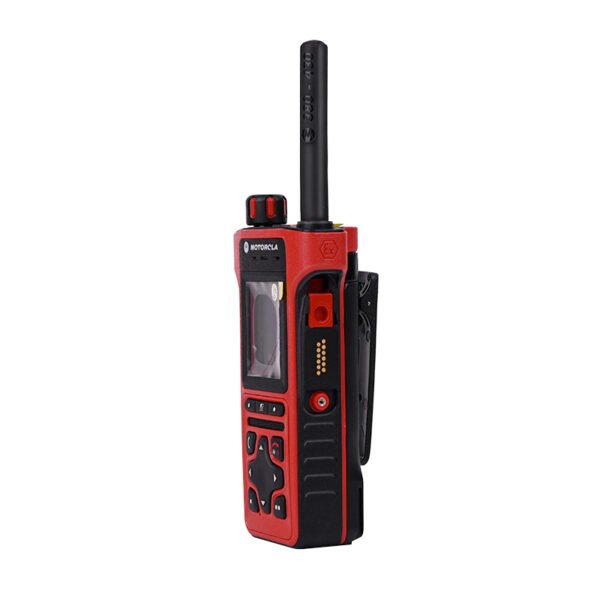

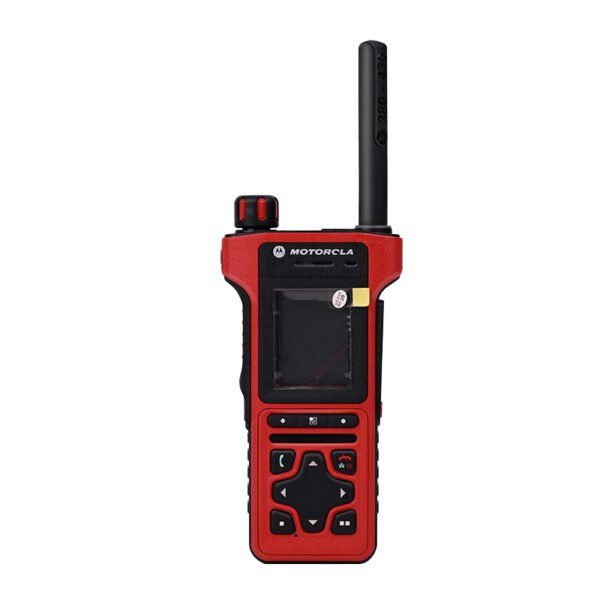

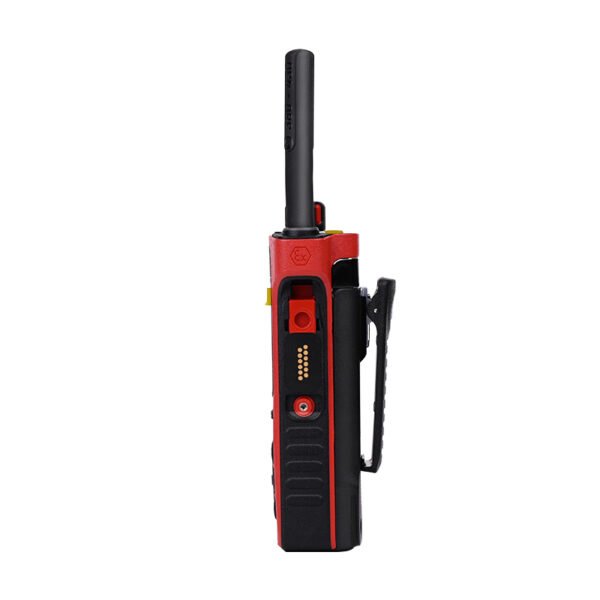

MTP8000Ex MTP8500Ex Motorola Intrinsically Safe Tetra Portable Radio

1. Product Introduction

The MTP8500Ex is part of the MTP8000Ex Series of TETRA ATEX radios by Motorola Solutions. These radios are designed for use in hazardous environments where there are potentially explosive gases, chemical vapours, flammable liquids, or combustible dust. The MTP8500Ex is engineered to provide reliable communication in such extreme conditions, ensuring the safety and efficiency of workers.

2. Product Highlights/Features

Intrinsically Safe: Certified to the latest ATEX and IECEx standards, making it safe for use in hazardous environments.
Ergonomic Design: Features a T-Bar profile for easy handling, even with gloves on.
Loud and Clear Audio: Optimized for excellent audio performance in noisy environments.
Enhanced Coverage: High receiver sensitivity and high transmit power for great coverage and in-building performance.
Long Battery Life: Ensures the radio is ready for longer shifts and emergencies.
Integrated Bluetooth: For wireless connectivity.
User-Friendly Interface: Large main color display and secondary top display for easy viewing of notifications and status.
Durability: Rated IP65, IP66, and IP67 for resistance to dust and water.

3. Basic Parameters

Dimensions: Height: 145mm, Width: 57mm, Depth: 40mm (with battery).
Weight: 442g (with battery and antenna).
Battery Options: 1250mAh IMPRES Li-ion Battery.
Audio Output Power: 1.2W at maximum volume.
Frequency Bands: 350-470 MHz, 800 MHz.
Transmitter RF Power: Class 3L, Class 4.
Receiver Sensitivity: Static: -116dBm (min), -118dBm (typical); Dynamic: -107dBm (min), -109dBm (typical).
Voice Functions: Full duplex and half duplex modes, emergency call features.
Data Services: Short Data Status messaging, Packet Data service.
Security: Air Interface Encryption, Authentication.
