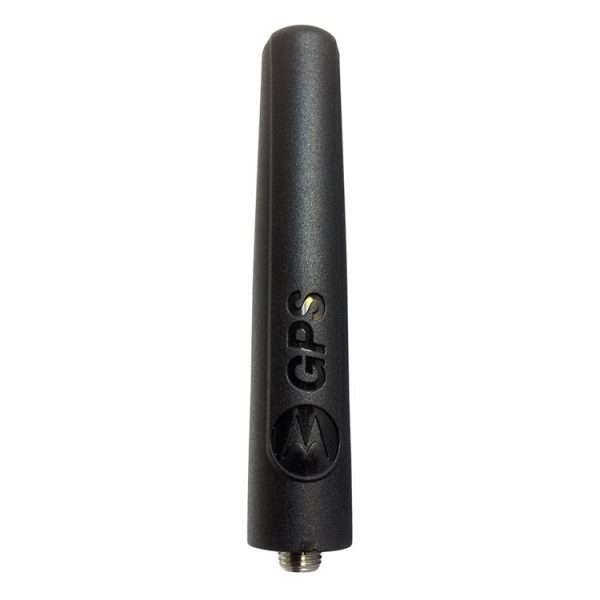

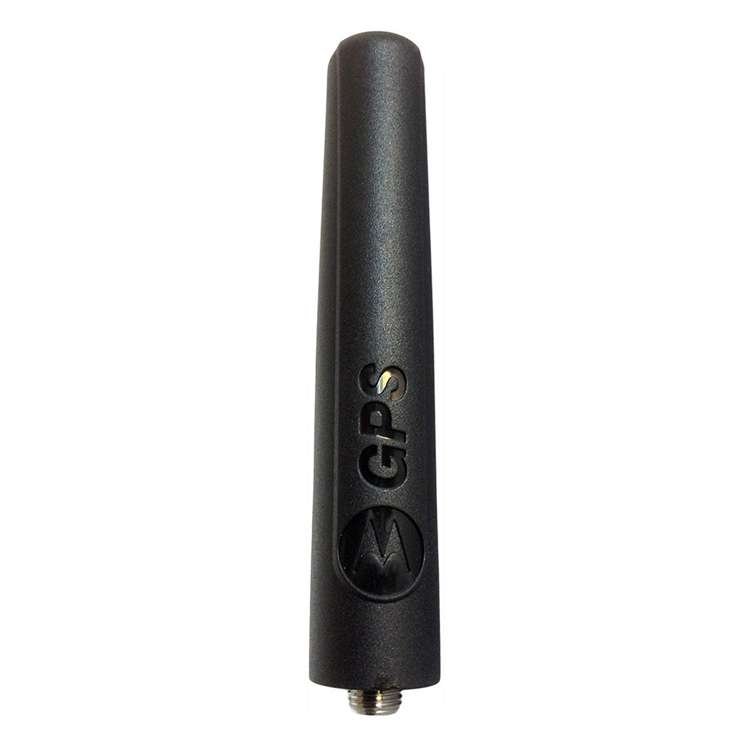

NAG4000A Motorola APX GPS Antenna
The NAG4000A Motorola APX Mackinaw GPS Antenna is for use with the APX series of two-way radios from Motorola Solutions – built for the toughest work environments.
Product Introduction
The Motorola Mackinaw GPS Antenna NAG4000A is designed for use with Motorola Solutions’ APX series two-way radios, suitable for demanding work environments. This 7cm antenna is essential for GPS functionality when using a public-safety microphone with the APX 7000 and 6000 models (700/800MHz only). Direct attachment to the APX radio is necessary when operating in a single band mode of UHF or 764-870 MHz. Note that this antenna is not intended for RF transmissions.
Product Parameters
- Model: NAG4000A
- Dimensions (inches): 3 H x 0.5 W x 0.5 L ( 76.20mm x 12.70mm x 12.70mm )
- Frequency Band: N/A
- Integrated GPS: Yes
- Mounting Style: SMA-FEMALE
- Type: Portable radio antenna
- Compatible Models: Compatible with Motorola APX5000, APX6000, APX6000 LI, APX6000/LI/XE, APX7000 Series, APX7000XE, APX8000, APX8000H, APX8000HSRX, APX8000HXE
